Ring Interface Hardware

Casing of the TTL to USB Converter

Download casing for TTL converter: .step file

The the used sensor including cabeling outside the building is IP68 classified. To keep the cabeling waterproof, a IP68 fitting with custom Ethernet CAT5 pinout was used. The casing for the TTLtoUSB converter is custom modeled and 3d printed.

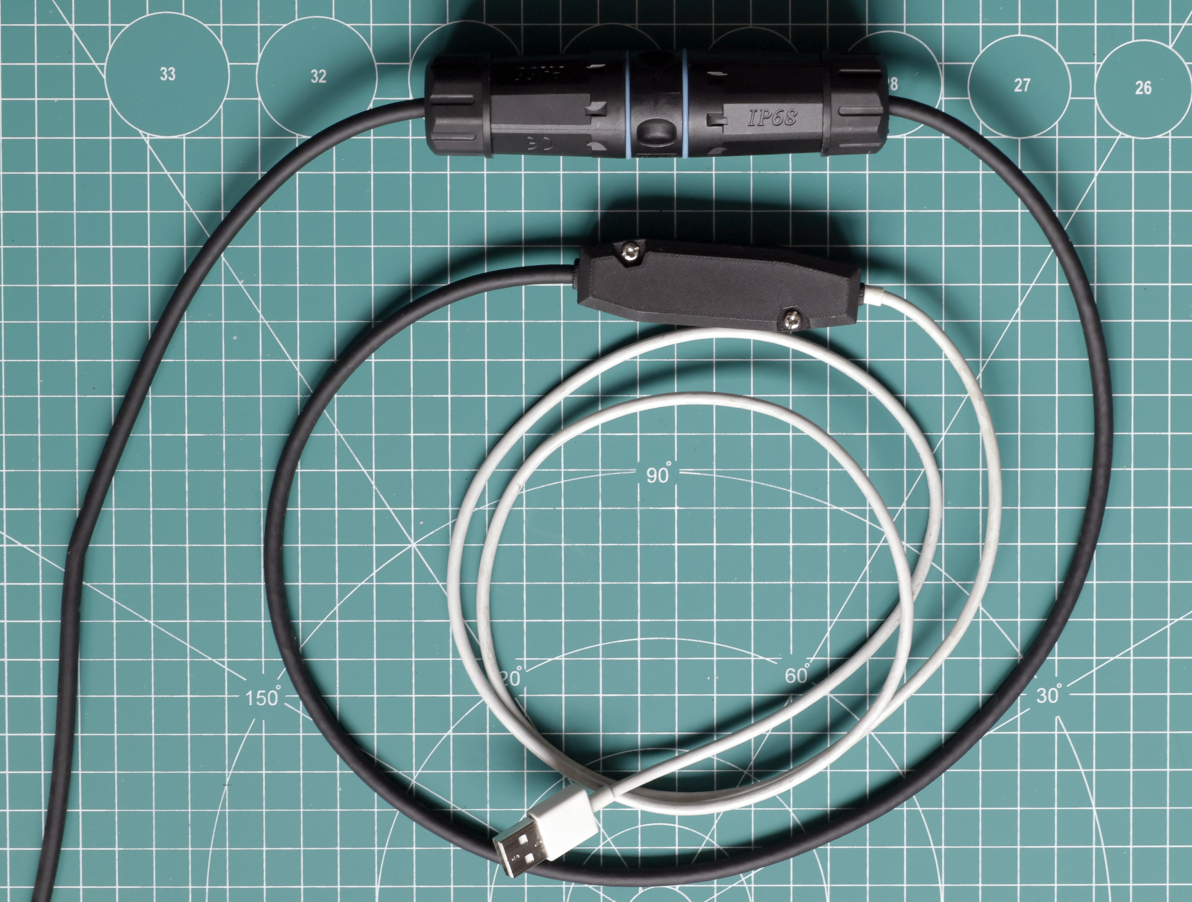

Connectors

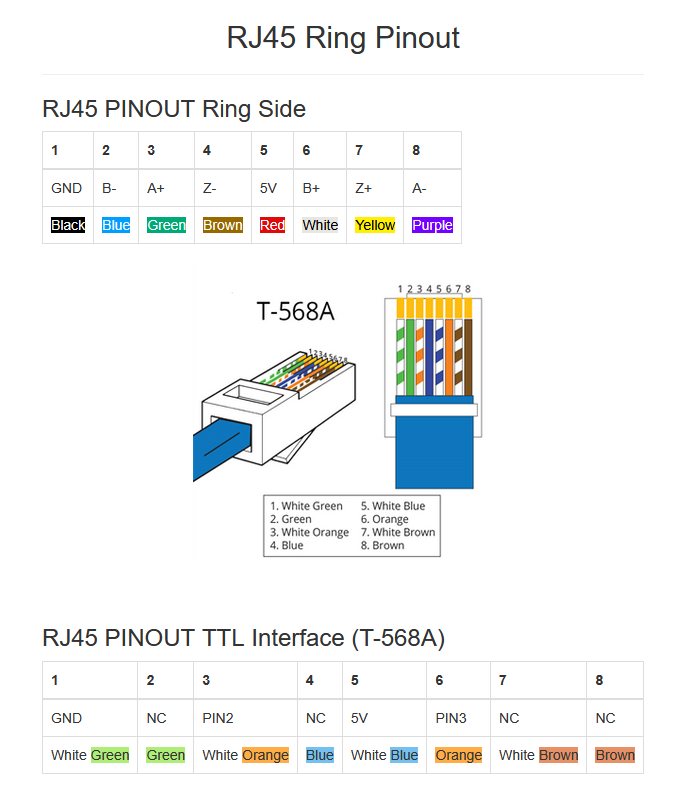

Pinout of the TTL to USB Converter

Pinout TTL Converter
